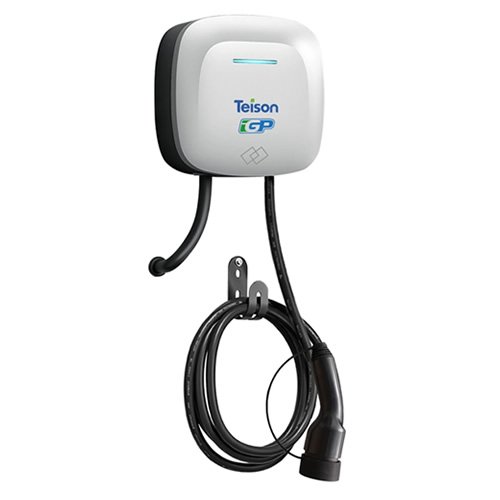

Teison Smart Mini
A small wallbox with home load balancing included, sold locally through Innovative Green Power.
Quick Verdict
Pros
- Home load balancing included (IGP)
- IP65 / IK10
- 7m cable on IGP units
- Solar mode option
- OCPP 1.6
Cons
- 2-year warranty
- Installation price not published
- Small body means a small status display
- Cable length differs between sources (4.5m vs 7m)
Key Specs at a Glance
Full Technical Specifications
| Specification | Details |
|---|---|
| Power output | 7 kW (1-phase) · 22 kW (3-phase) |
| Max current | 32 A |
| Voltage | 230 V single-phase / 380–400 V three-phase |
| Connector | Type 2, tethered |
| Cable length | 7 m (IGP); 4.5 m standard spec |
| Connectivity | Bluetooth, Wi-Fi, 4G optional |
| App | Teison app |
| OCPP | OCPP 1.6 |
| Load balancing | Home load balancing (IGP standard) |
| Solar charging | Solar mode option |
| User authentication | App; RFID optional |
| Display | LED status |
| Electrical protection | Residual current protection, over/under-voltage, over-temp |
| Weatherproof rating | IP65 / IK10 |
| Operating temperature | −30 °C to 50 °C |
| Mounting | Indoor or outdoor wall |
| Warranty | 2 years |
| Sold in Malaysia by | Innovative Green Power (Teison-IGP) |
Will it work with my EV?
Yes. It has a tethered Type 2 plug, so any EV sold in Malaysia plugs in.
Your actual charging speed will depend on the lower of two limits: the charger’s rating and your car’s onboard AC charger (many EVs cap AC charging at 7 kW or 11 kW, so a 22 kW wallbox won’t push them any faster).
Will it work with my home?
On single-phase, the 7 kW Smart Mini (32 A) is the right model.
Installing the 11 kW or 22 kW version requires a three-phase electrical supply. Having three-phase isn’t the end of it. Your installer still has to check there’s spare capacity once the aircons and water heater are counted.
Charging Speed & Overnight Time
On single-phase, a 7.4 kW unit adds roughly 35 to 40 km of range per hour. Plug in after dinner and most cars are full by morning.
Faster only counts if your car and your DB can both take it. For daily driving, 7.4 kW overnight is plenty.
| Power Rating | Est. Speed (km/hr) | 0–100% (60 kWh Battery) |
|---|---|---|
| 7.4 kW (Single-phase) | ~35–40 km/hr | ~8–9 hrs |
| 11 kW (Three-phase) | ~55–60 km/hr | ~5–6 hrs |
| 22 kW (Three-phase) | ~110–120 km/hr | ~3 hrs |
Total Installed Price in Malaysia
- Charger unit
From RM3,299 (IGP) - Standard installation
RM800–1,200 - Long cable run >10m
+RM300–600 - DB box upgrade
+RM500–1,000 - Three-phase supply upgrade
+RM2,000–5,000 - Concealed wiring
+RM500–1,500 - Estimated all-in
Unit + RM800–1,700 typical install - Your real price depends on your home. Get quotes from installers.
Find an installer →
Installation & Safety
A good charger badly wired is still a bad charger. For the Teison Smart Mini, a proper job includes:
- A dedicated EV circuit originating from your distribution board (DB).
- Cable sized for hours at full load. A 32 A charger runs flat out all night, so undersized wire will cook.
- Proper earthing and surge/circuit protection.
- A load check before anything is drilled, so you know your supply can carry it.
- Full testing and compliance with Suruhanjaya Tenaga (Energy Commission) EVCS guidelines.
- Assistance with TNB application (if supply upgrades are needed).
Smart Features
- Home load balancing: drops charging power when the house is busy
- Solar mode: charge from surplus rooftop solar
- Scheduled charging: set in the app
- Energy tracking: session data in the app
- OCPP 1.6: for a CPO or JMB back end
Dynamic Load Balancing
IGP sells the Smart Mini with home load balancing as standard. It watches total household draw and cuts charging current before the main breaker trips. Useful for an older terrace with a small supply.
Cable & Everyday Convenience
IGP units come with a 7m tethered Type 2 cable, which is generous. Teison’s own spec sheet lists 4.5m, so confirm which one you’re getting.
Weather & Durability
IP65 and IK10, so an open wall is fine. Under the porch roof still keeps it cooler.
App User Experience
You control it through the Teison app over Bluetooth or Wi-Fi, with scheduling, solar mode and session history.
Is the Teison Smart Mini right for you?
Single-phase landed home
Three-phase landed home
Condo resident or JMB
Ready to get quotes?
Get quotes from verified installers across Malaysia who supply and fit Teison Smart Mini.
Compare Alternatives
Teltonika TeltoCharge
Will it work with my EV? Yes. It charges through Type 2, tethered or…
Read review →Zeeda Energy E Series (Zhida/ZD)
Will it work with my EV? Yes. It charges through Type 2, the standard…
Read review →Frequently Asked Questions
Only the 22 kW model, on three-phase with spare capacity. Single-phase homes get the 7 kW.
Yes. It charges through Type 2, the standard on every EV sold in Malaysia. Real speed is the lower of the charger rating and your car's onboard AC charger, usually 7 to 11 kW.
Most terrace and semi-D homes are single-phase, which tops out at 7.4 kW. Three-phase is more common in bigger or newer homes. Your TNB meter or installer can tell you.
At 7.4 kW, about 35 to 40 km of range per hour. A 60 kWh battery goes from 20% to 80% in roughly 5 hours.
Innovative Green Power lists RM3,299 for 7 kW and RM4,799 for 22 kW, excluding installation. Ask IGP for the install quote.
Yes, IP65 and IK10. It can handle rain on an open wall. Shade still helps in the long run.
IGP lists a 2-year warranty on the charger.
